Mithra Products > Products > V-Guard Ongrid Solar Power > 5 kW 3P Vguard Solar On-Grid Inverter System
Sale!
Solar power system product Hyderabad

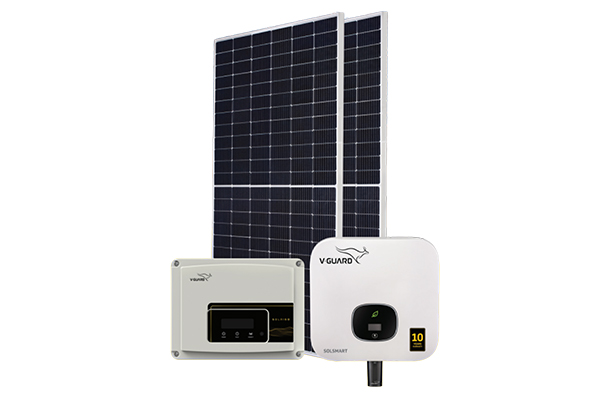

5 kW 3P Vguard Solar On-Grid Inverter System

Original price was: ₹430,000.00.Current price is: ₹355,000.00.

Brand: Solar Rooftop

Capacity: 5 kW 3P

Category: Brand:

Specifications

5Kw 3P THREE PHASE MODEL
Capacity 5
Input (DC)
Max Peak DC Input Power (KW) 6.00
Max. DC I/P (V dc) 1000
Max. MPPT I/P Current(A) 13A
MPPT Short Circuit Current (A) 20A
MPPT Tracking Voltage (Vdc) 150-1000
Min. Start Voltage (V) 180Vdc
Number of MPPT Tracker 2
strings Per MPPT Trackers 1
Output (AC)
Rated output power (KW) 5
Rated Grid Voltage (V) 380/400/415 (400 Default)
Nominal Grid freq.(Hz) 50Hz / 60Hz ( 47-52Hz) / (57-62Hz)
Max. output current AC (A) 7.2
AC Connection (with PE) 3P+ N +PE
THDI (%) <3% (At Rated Power)
Output Power factor(%) (0.8 Lead) 1 (0.8 Lag)
Efficiency
Max. conversion eff. (%) 98.2
Max. Euro Efficiency (%) 97.5
Protection
DC Reverse Polrity Yes Integrated
AC Short circuit Yes Integrated
Ground Fault Monitoring Yes Integrated
Grid Monitoring Yes Integrated
Anti-Islanding Protection Yes Integrated
Insulation Resistance Detection Yes Integrated
Residual Current Monitoring Yes Integrated
Over Voltage Protection Yes Integrated
AFCI Protection Optional
DC Switch Inbuilt
String Fault Monitoring N.A.
Surge Protection – AC TMOV +Filter
Surge Protection – DC TMOV +Filter
General Data
Dimensions(W*H*D) mm 425*351*160mm
Weight (Kg) 13.7Kg
Noise Emission (dB) <30dB
Display WHITE LCD & LED
DC Connection type MC-4
AC Connection type Plug in Connector
Communicaton interface WiFi/ GPRS/ RS 485
Cooling Method Natural Convection
Operating ambient -25 C – +60°C
Relative Humidity 0% – 100%
Max. Operating Altitude (m) 2000 (>2000 Derating)
Protection Class IP65
Night stand by power Consumption (w) <1
Standard Warranty 10 yrs*
Certifications BIS

Description

5 kW 3P Solar On-Grid Inverter System Suppliers in Hyderabad – Mithra Products

Welcome to Mithra Products, your reliable and experienced partner in solar energy solutions. We are proud to be one of the top 5 kW 3P Solar On-Grid Inverter System suppliers in Hyderabad, offering advanced solar technology tailored for three-phase connections. Whether you are a homeowner, small business, or builder, our systems are designed for efficiency, durability, and long-term savings.

Our 5 kW 3P Solar On-Grid Inverter System is ideal for properties with a three-phase electrical connection, ensuring balanced power distribution and maximum solar energy utilization. This system seamlessly connects to the grid, allowing you to use solar power during the day and export excess energy for credit through net metering.

Why Choose a 5 kW 3P Solar On-Grid Inverter System?

  • Ideal for Three-Phase Loads: Best suited for homes or commercial setups with 3-phase electrical supply.
  • Efficient Daily Output: Generates around 13–15 units of electricity per day, helping reduce monthly power bills.
  • Net Metering Advantage: Sell surplus energy back to the grid and earn credits on your electricity bill.
  • Smart Energy Monitoring: Most inverters come with mobile or web-based monitoring for real-time performance tracking.
  • Eco-Friendly Choice: Reduce your dependency on conventional electricity and lower your carbon footprint.

Trusted Solar Rooftop Experts in Hyderabad

At Mithra Products, we offer complete solar solutions—from consultation and system design to supply, installation, and post-installation support. As trusted 5 kW 3P Solar On-Grid Inverter System suppliers in Hyderabad, we work with industry-leading brands and the latest inverter technology to ensure optimal performance and reliability.

Our expert team ensures the system is installed with precision, aligned with your energy requirements, roof space, and local DISCOM guidelines.

Benefit from Government Schemes

We help you take advantage of central government initiatives like the PM Surya Ghar Muft Bijli Yojana, guiding you through the subsidy process, documentation, and net metering approvals—making your solar investment even more affordable.

If you’re looking for reliable and efficient 5 kW 3P Solar On-Grid Inverter System suppliers in Hyderabad, trust Mithra Products for top-tier quality, expert service, and long-term energy savings. Contact us today for a free consultation and make the switch to clean solar energy!

Terms And Conditions

01. Availble only in Telangana State.
02. Prices Mentioned are including Taxes, Govt. Charges and Free Transportation & Installation.(inside Hyderabad ORR), Other Places Extra., varies from location to location.
02. Civil/Masonry Work under customer scope. Structure of 4ft X 2ft height is included. Extra Amount for Additional / increase in Struture height.
03. MNRE / TGREDCO Approvals & Feasibility check within 7 Working Days, after Submitting the xerox/pdf copy of Aadhar Card, Pan Card, Electricity Bill and 1 Cheque.
04. Despatching of the the material Within 7 Working Days, after MNRE & TGREDCO / Bank Loan approvals.)
05. Installation will be completed with in 7 to 10 Working Days after Material Despatch at site.
06. For Fixing of Net-Meter after installation of solar rooftop, will Take 15 to 21 Days.(TGREDCO/DISCOM)
07. Subsidy Amount Will be credited to your Bank Account from MNRE.
