Mithra Products > Products > V-Guard Ongrid Solar Power > 3.3 kW Vguard On Grid Solar System
Sale!
Solar power system product Hyderabad

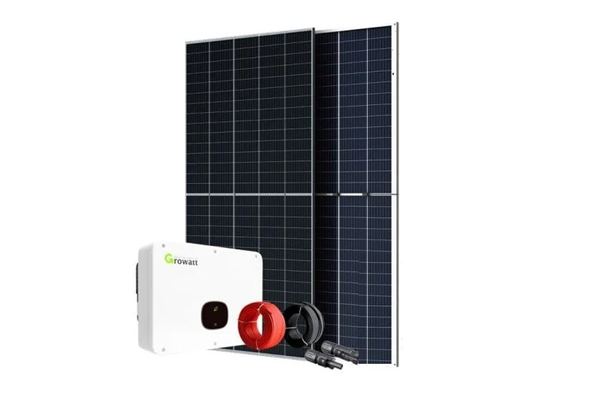

3.3 kW Vguard On Grid Solar System

Original price was: ₹260,000.00.Current price is: ₹210,000.00.

Brand: Solar Rooftop

Capacity: 3.3 kW

Category: Brand:

Specifications

3.3 Kw 1P SINGLE PHASE
Capacity 3.3
Input (DC)
Max Peak DC Input Power (KW) 3.6
Max. DC I/P (V dc) 500Vdc
Max. MPPT I/P Current(A) 13A
MPPT Short Circuit Current (A) 20A
MPPT Tracking Voltage (Vdc) 80-500
Min. Start Voltage (V) 80Vdc
Number of MPPT Tracker 1
strings Per MPPT Trackers 1
Output (AC)
Rated output power (KW) 3.4
Rated Grid Voltage (V) 140 – 300
Nominal Grid freq.(Hz) 50Hz / 60Hz ( 47-52Hz) / (57-62Hz)
Max. output current AC (A) 13.80
AC Connection (with PE) P + N + E
THDI (%) <3% (At Rated Power)
Output Power factor(%) (0.8 Lead) 1 (0.8 Lag)
Efficiency
Max. conversion eff. (%) 98.0
Max. Euro Efficiency (%) 97.0
Protection
DC Reverse Polrity Yes Integrated
AC Short circuit Yes Integrated
Ground Fault Monitoring Yes Integrated
Grid Monitoring Yes Integrated
Anti-Islanding Protection Yes Integrated
Insulation Resistance Detection Yes Integrated
Residual Current Monitoring Yes Integrated
Over Voltage Protection Yes Integrated
AFCI Protection Optional
DC Switch Optional
String Fault Monitoring N.A.
Surge Protection – AC TMOV
Surge Protection – DC TMOV
General Data
Dimensions(W*H*D) mm 297*223*117mm
Weight (Kg) 4.8Kg
Noise Emission (dB) <30dB
Display WHITE LCD & LED
DC Connection type MC-4
AC Connection type Plug in Connector / Wire cables
Communicaton interface WiFi/ GPRS/ RS 485
Cooling Method Natural Convection
Operating ambient -25 C – +60°C
Relative Humidity 0% – 100%
Max. Operating Altitude (m) 2000 (>2000 Derating)
Protection Class IP65
Night stand by power Consump- tion (w) <1
Standard Warranty 10 Years*
Certifications BIS

Description

3.3 kW On-Grid Solar Power System Suppliers in Hyderabad – Mithra Products

Welcome to Mithra Products, your trusted source for reliable and affordable solar energy solutions. We are proud to be one of the leading 3.3 kW On-Grid Solar Power System suppliers in Hyderabad, offering high-quality products and expert installation services tailored to your needs.

Our 3.3 kW On-Grid Solar Power System is a perfect solution for small homes, apartments, and independent houses with low to moderate electricity usage. Designed for maximum efficiency and savings, this system connects directly to the electricity grid, allowing you to utilize solar power during the day and export any extra energy back to the grid.

Why Choose a 3.3 kW On-Grid Solar Power System?

  • Daily Energy Generation: A 3.3 kW On-Grid Solar Power System generates approximately 13–15 units of electricity per day, depending on sunlight availability.
  • Reduced Power Bills: With net metering, you can send unused power to the grid and receive credits—resulting in substantial monthly savings.
  • Easy Maintenance: On-grid systems are low-maintenance and highly efficient.
  • Clean Energy: By using solar energy, you’re contributing to a greener planet and reducing your carbon footprint.

At Mithra Products, we offer complete end-to-end services—from initial consultation and site assessment to delivery, installation, and after-sales support. As expert 3.3 kW On-Grid Solar Power System suppliers in Hyderabad, we focus on quality, performance, and customer satisfaction in every project we handle.

Customized Solar Rooftop Solutions

We understand that every customer has unique energy requirements. Our team of experienced engineers designs customized solar rooftop systems that match your space, energy needs, and budget. We use high-grade solar panels, inverters, and mounting structures to ensure reliable performance for years to come.

Avail Government Subsidies

We also assist you in benefiting from government schemes such as the PM Surya Ghar Muft Bijli Yojana, which provides subsidies for residential solar installations. Our team manages the application and documentation process, making it easy for you to save even more on your investment.

If you’re looking for reliable 3.3 kW On-Grid Solar Power System suppliers in Hyderabad, choose Mithra Products for trusted service, quality products, and expert guidance. Contact us today for a free consultation and start your journey toward clean and cost-effective solar energy.

Terms And Conditions

01. Availble only in Telangana State.
02. Prices Mentioned are including Taxes, Govt. Charges and Free Transportation & Installation.(inside Hyderabad ORR), Other Places Extra., varies from location to location.
02. Civil/Masonry Work under customer scope. Structure of 4ft X 2ft height is included. Extra Amount for Additional / increase in Struture height.
03. MNRE / TGREDCO Approvals & Feasibility check within 7 Working Days, after Submitting the xerox/pdf copy of Aadhar Card, Pan Card, Electricity Bill and 1 Cheque.
04. Despatching of the the material Within 7 Working Days, after MNRE & TGREDCO / Bank Loan approvals.)
05. Installation will be completed with in 7 to 10 Working Days after Material Despatch at site.
06. For Fixing of Net-Meter after installation of solar rooftop, will Take 15 to 21 Days.(TGREDCO/DISCOM)
07. Subsidy Amount Will be credited to your Bank Account from MNRE.
